Underground Haulage
Underground Mine Cars and Rail Transport Equipment
Rail transport remains a practical system for moving coal, waste rock, support materials, long components, and heavy equipment through underground roadways.
The supplied catalog covers several car structures. Model selection starts with payload, rail gauge, track condition, turning radius, coupling arrangement, unloading method, and the equipment already used at the mine.
Fixed-body mine car photographed on the Zhongmei factory floor
/images/coal-mine-cars.jpg
Structures
6 types
Fixed, tipping, side-dump, bottom-dump, material, and flat cars
Selection
By gauge
Rail gauge, wheel set, coupling, payload, and curve radius
Loads
Bulk/long
Coal, ore, waste rock, supports, rails, pipes, and equipment
Documents
Model match
Certificate and drawing status checked before quote
Bulk Material Mine Cars
Fixed-body and tipping mine cars handle coal, ore, waste rock, and other loose materials. The unloading station and roadway layout determine whether a fixed car, tipping body, curved-rail side discharge, or bottom discharge system is suitable.
- Fixed-body mine car
- Tipping mine car
- Single-side curved-rail side-dump car
- Bottom-dump mine car

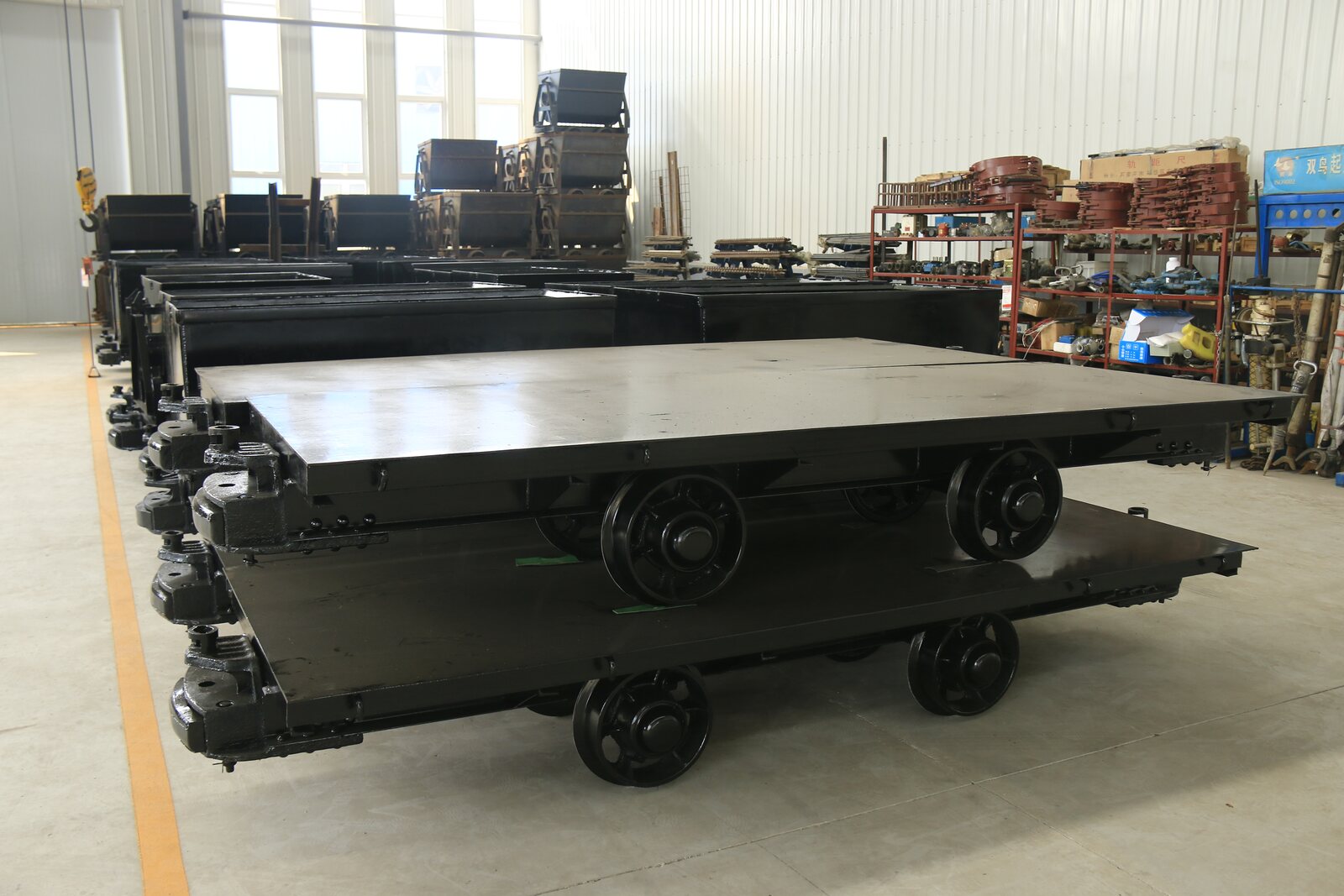

Mining flat car prepared for heavy equipment load planning
/images/coal-flat-car.jpg
Material and Equipment Transport
Material cars carry roof supports, rails, pipes, cable, timber, pumps, motors, and maintenance supplies. Flat cars are used for large or irregular loads such as hydraulic supports, roadheaders, transformers, and long components.
- Material car for support and track supplies
- Flat car for heavy equipment
- Low center of gravity
- Load restraint planned for the exact cargo
Comparison Table
Mine Car Selection Matrix
Final parameters are confirmed against the requested model, drawing, and mine transport system.
| Car type | Typical load | Unloading method | Main data needed |
|---|---|---|---|
| Fixed-body | Coal, ore, waste rock | Tippler or unloading station | Payload, volume, gauge, coupling |
| Tipping | Loose material | Rotating body | Volume, discharge side, gauge |
| Side-dump | Coal and waste rock | Curved-rail side discharge | Track layout, discharge side, payload |
| Bottom-dump | High-volume bulk haulage | Bottom opening | Unloading station, gauge, train set |
| Material car | Supports, rails, pipes, supplies | Lift or manual unloading | Load envelope, length, tie-down points |
| Flat car | Heavy and irregular equipment | Crane or hoist | Equipment weight, dimensions, center of gravity |
Frequently Asked Questions
Short answers to the commercial and technical questions buyers usually ask before they compare suppliers.
Can you provide an MA certificate for every model?
Document status is checked against the exact model before quotation. Similar product names can have different certificate scopes and validity dates, so we confirm the model, certificate number, holder, and current status as one package.
What information is needed for a technical quote?
Send the model or equipment type, mine conditions, rail gauge or roadway size, voltage, required capacity, quantity, destination, and required document set. Photos, drawings, and an existing equipment nameplate are useful for replacement orders.
Can equipment be inspected before shipment?
Yes. The inspection plan can cover dimensions, nameplates, welds, operating functions, order configuration, document matching, packing, and loading evidence. Test items depend on the equipment category and contract.
Need a Quote for Mine Cars?
Send the exact model if known, mine conditions, quantity, destination, preferred trade term, and document requirements. We will reply with the open technical questions and next steps.
